Meat Flattening Machine

Hiwell meat flattening machine falls into two types YYJ400-II and YYJ600-II.

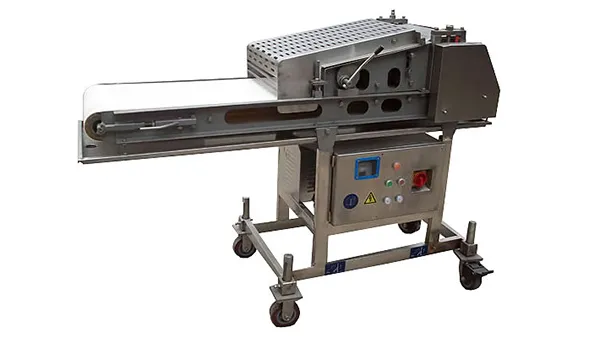

YYJ400-II Meat Flattening Machine

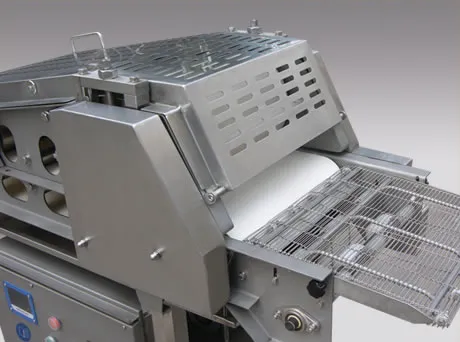

YYJ400-II meat flattening machine is fitted with 4 pressure rollers to flatten all kinds of fresh or frozen meat materials to desirable thickness. Our stainless steel flattening equipment improves your food production by equal cooking time and reduced frying time. This meat product processing machine is applicable for production of beef steak, meat steak and fish steak in thickness less than 40mm.

Advantages
1. Ready-to-Install design meets your exigent needs for chilling on installation, adjustment and cleaning.
2. Water spraying system is available to prevent products from sticking on conveyor belt.
3. Our meat flattening machine is endowed with dependable protection system and Siemens electronic components for durable performance.
4. Continuous production is realizable by incorporating with our electric meat tenderizer.
5. We adopt stainless steel to fabricate this multi-functional food flattening equipment with ingenious design.

Technical Parameters
Conveying Speed 3-15m/min (Variable Frequency Speed Control)
Belt Width 300/400/600mm
Flattening Thickness 3-30mm
Power 1.5kW
Overall Dimension 2135×715×1320mm

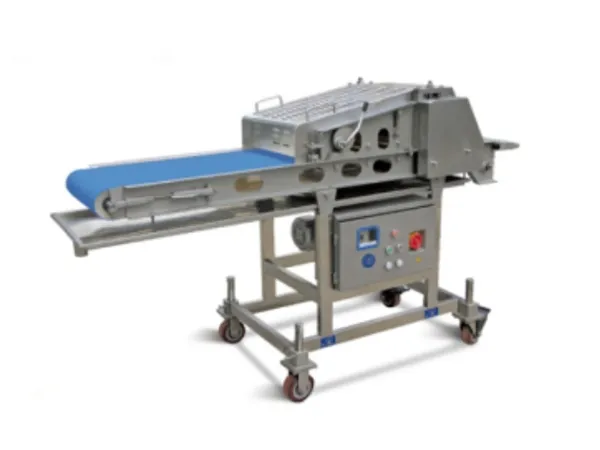

YYJ600-II Meat Flattening Machine

YYJ600-II meat flattening machine is also equipped with 4 pressure rollers to flatten fresh or frozen meat materials. Extended surface area is responsible for equal cooking time and minimized frying time.

This meat processing equipment is applicable for processing of all kinds of poultry, pork, beef, potato, cheese and fish in thickness less than 40mm. Based on exceptional connectivity to plant automation, our food processing machine can work together with meat tenderizer to build production line catering to various needs.

Advantages
1. This meat flattening machine has water spraying system to avoid products sticking to conveyor belt.
2. Protection system ensures safety of your operators.
3. This meat flattening machine is constructed with stainless steel for reliable performance.

Technical Parameters
Conveying Speed 3-15m/min (Variable Frequency Speed Control)
Belt Width 400/600mm
Flattening Thickness 3-30mm
Power 1.5kW
Overall Dimension 2135×715×1320mm

Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our meat flattening machine is 1 year, excluding wire belt. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
