Home » Products » Food Processing Equipment » Food Forming Machine » AMF600-IV Automatic Multi-function Food Forming Machine
AMF600-IV

Automatic Multi-function Food Forming Machine

Inquiry

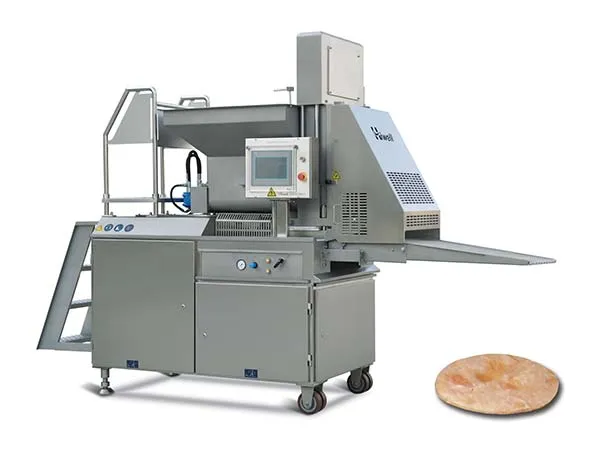

AMF600-Ⅳ Automatic Multi-function Food Forming Machine
Updating the system comprehensively:

1. It can be suitable for metal forming plates
2. The protective grade for the electric apparatus parts reach to IP67
3. The speed increases to 70 stokes /min
4. Material leakage decreases to ≤1.5%
5. New user interface
6. To avoid the operation mistake, with high safe guarantee.

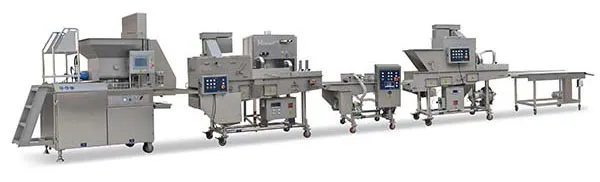

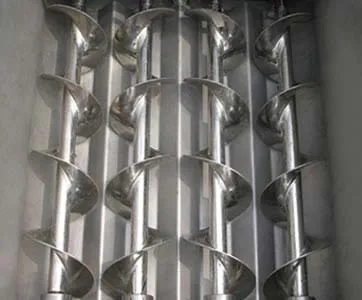

The AMF600-IV automatic multi-function food forming machine is amazing food processing equipment that performs various functions such as meat filling and forming. The forming machine can be combined with a batter machine, preduster, fryer, cooker, instant freezer and packing device to create a complete food production line. The machine features a four-screw feeding system, which greatly increases production capacity and operating stability. The highly accurate portion control design realizes a cost efficient food production output.

The automatic multi-function food forming machine is designed for the handling of various meets such as poultry, fish, beef and shrimp, as well as other food products. It is a versatile machine that can form patties of meat as well as minced/sliced products.

Electric apparatus: The food forming machine is equipped with a Siemens PLC processor that is touch screen operation. The Chinese/English operating system is easy to use and features an automatic failure alarm system.

Safety features: Magnetic protection switch (safe cover).

Hydraulic parts: The machine adopts Vickers, Stauff and Parker integrated hydraulic original parts to guarantee complete, stable operation.

Pneumatic system: German FESTO pneumatic system. It is constructed from stainless steel and is designed according to HACCP and CE specifications.

Technical parameter
Width of the belt 600mm
Air / water pressure 6Bar/ 2Bar
Power 15.12kW
Production capacity About 500-1200kg/hour
Strokes 30-70 strokes per minute
The thickness of product 6-40mm
Weight Error ≤1%
The maximum diameter 150mm (for round burger)
Filling pressure 3-15Mpa adjustable
Overall dimension 3170×1176×2430mm
