FQJ500-Ⅱ

Horizontal Slicer

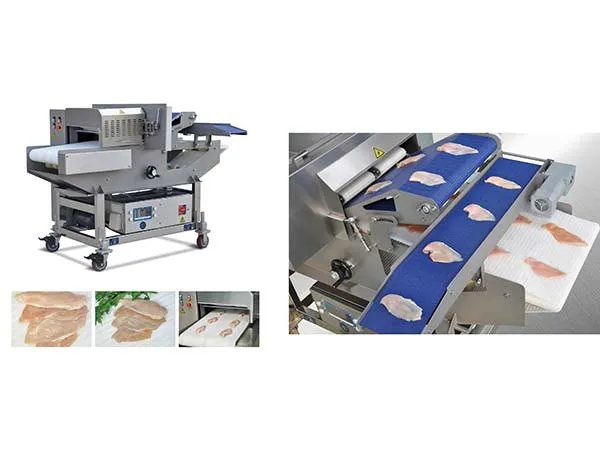

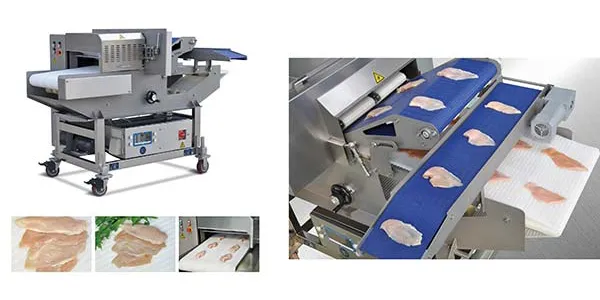

FQJ500-Ⅱ Horizontal Slicer

This horizontal slicer model is a design that was expertly engineered for fresh meat food processing. The slicing machine performs fine horizontal meat cutting, suitable for pork, beef, poultry and fish processing.

Features
1. Great meat slicing precision.
2. Adjustable slicing thickness with minimum slice height of 5mm, maximum slice height of 50mm.
3. Auto adjustment to different precut thicknesses
4. Intelligent sorting system.
5. Two lane operation, 150 pcs/min, high yield guaranteed.
6. Quality modular mesh belt, guaranteed long working life.
7. Siemens electrical parts with a CE approved safety device.
8. Easy to clean stainless steel construction, HACCP approved.
9. Easy to operate, low maintenance cost.

Benefits
1. Minimal operating cost.
2. Cutting byproducts can be recycled for different food production purposes.
3. The horizontal slicer can work together with a strip cutter to produce products such as chicken strips.
4. Can work in conjunction with the intelligent portion cutter.

Technical Parameters
Model FQJ500-II
Belt width 500mm
Belt speed 3~15m/min
Cutting thickness Min.: 5mm Max.: 50mm
Cutting speed 150pcs/min (Dual-lane)
Max. product width 180mm
Input/Output height 1050±50mm
Power 1.74kW
Overall dimension 2000×1152×1410mm
