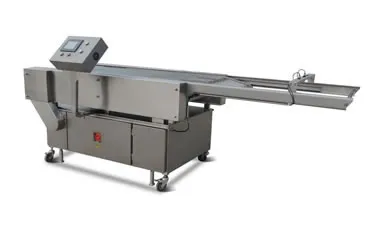

Automatic Shuttle Transfer System
Hiwell Machinery automatic shuttle transfer system utilizes belt conveyor for repeatable transport of products. This stainless steel conveying system offers 90° transfer and single-multiple transfer lines. Our automatic transfer equipment promotes your food processing line by enhanced conveying efficiency and accuracy.
- Servo motor is employed by shuttle system to maximize precise positioning.
- This automatic shuttle transfer system is compatible with AMF400 and AMF600 automatic food forming machines for optimized plant automation.
- Our shuttle transfer machine is fitted with touch screen control system, offering intuitive and fast operation.
- This food processing conveyor is available in customized sizes to fit diverse needs.
- We adopt quality stainless steel and non-metallic materials for fabrication of our automatic shuttle transfer system, so as to meet HACCP requirements.
| Conveying Speed | 3-15m/min (Variable Frequency Speed Control) |
| Input Height | 1050±50mm |
| Output Height | 1050±50mm |
| Belt Width | 400/600mm |
| Power | 2.05kW |
| Overall Dimension | 3060×940×1400mm |
Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our flouring machine is 1 year, excluding wire belt. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
