Ice Water Coating Machine

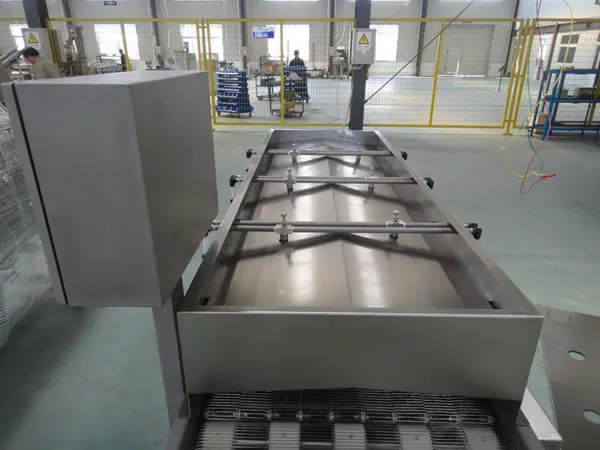

Hiwell Machinery ice water coating machine mixes water and air into vapor and sprays the vapor to material surface to evenly creates ice coating. Apparently, our stainless steel food processing machinery is used to reduce loss of water contained in all kinds of meat and seafood during transportation.
This seafood processing equipment can be utilized as stand-alone equipment. Moreover, customized ice water coating machine is also available to perform to your expectation.
- Uniform spraying is the significant value this shrimp coating machine adds to your processing plant. Ice coating thickness is varied by 2-5%.

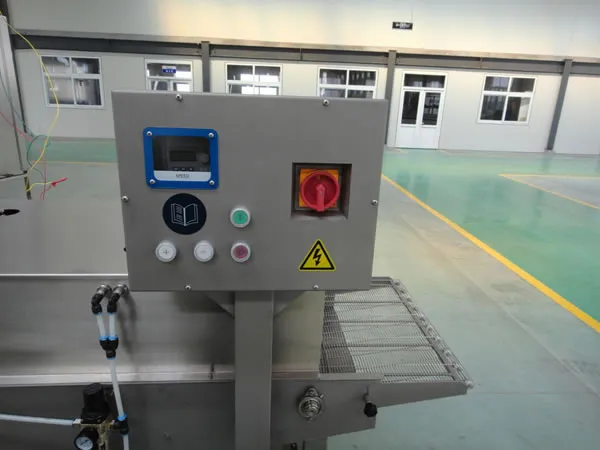

- We choose electronic components supplied by Siemens and prominent Chinese enterprises for reliable performance.
- This fish coating equipment is IP65 rated for waterproof feature.
- We build this ice water coating machine with high-end stainless steel and food-grade non-metallic materials for highest levels of sanitation.
- The entire food processing machine receives blasting treatment for corrosion resistance. Guard plate is made from draw plates for durability.
| Conveying Speed | 3-15m/min (Variable Frequency Speed Control) |
| Input Height | 800 ± 50mm |
| Output Height | 800 ± 50mm |
| Belt Width | 400/600mm |

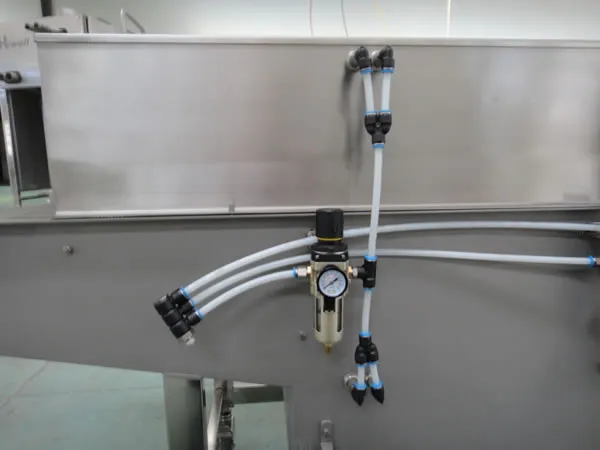

| Air Pressure/Water Pressure | 6 bar/2 bar |
| Power | 0.55kW |
| Overall Dimension | 2700×780×1430mm |
Notes
1. Application voltage environment should be given when making order, so as to choose the proper electric motor.
2. The warranty time for our flouring machine is 1 year, excluding wire belt. We offer charged maintenance services when warranty time is over.
3. Always wearing noise reduction earplug and hygienic uniform. Non-trained personnel are forbidden for machine operation.
